Controlling factors of productivity in early and middle stage of ultra-deep and highly heterogenous gas reservoir and development strategies optimization: Case study of Sinian gas reservoirs in Anyue gas field, central Sichuan Basin
CAI Junjun,, PENG Xian, LI Qian, ZHAN Tianhui, ZHU Zhanmei, LI Wen, ZHAO Xiang, ZHANG Fei, JIANG Jun
Exploration and Development Research Institute, PetroChina Southwest Oil & Gasfield Company, Chengdu 610041, China

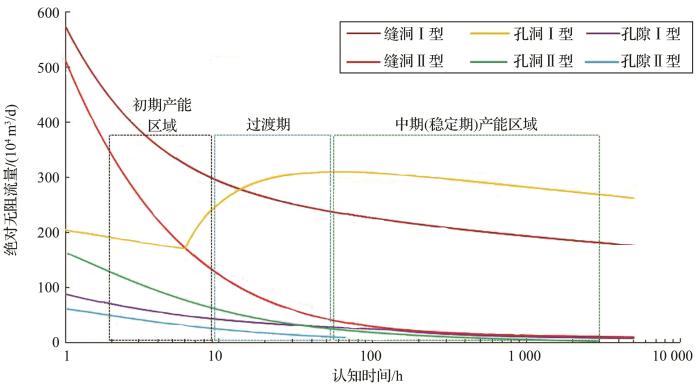

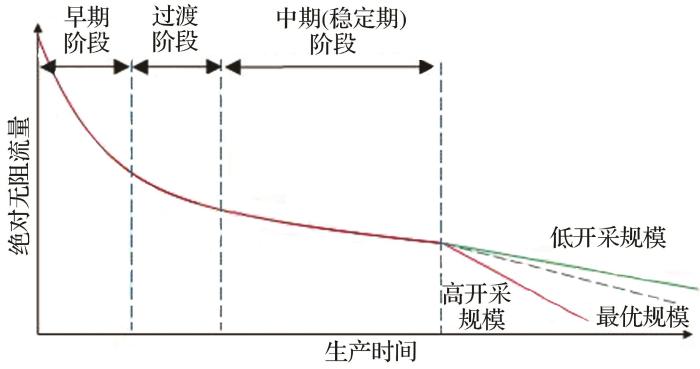

Taking Deng 4 Member gas reservoir of Sinian system in central Sichuan Basin as an example, aiming at the main problems of the controlling factors of productivity and development strategies optimization in the early and middle stages of the highly heterogenous gas reservoir，the scientific connotation of the controlling factors of gas well productivity was studied，and the core elements and main research items of the controlling factors of productivity in different stages were put forward. Based on the six types typical seepage patterns of gas reservoirs, the early, transitional and stable stages were defined. On this basis, the countermeasures and suggestions were given in four aspects: Well location plane deployment, target location, transformation process and production well system optimization. The results show that: (1) The controlling factors of productivity refer to the main conditions that affect the productivity of gas wells, and the research objects and emphases are different in different development stages. The core elements are the implementation of reserve base, the seepage capacity of transformation area and far well area, and the main research items are the key indicators of high-quality reservoirs, seismic response, special well test interpretation technology, etc. (2)The regular production capacity of the early stage, transitional and stable stages of Deng 4 Member gas reservoir is controlled by the development of high-quality reservoir，the matching of fracture system after reservoir transformation，the gas supply capacity of far well area and the remaining dynamic reserves. And the influence of the electrical characteristics of high-quality reservoir, the characteristics of well test after transformation, construction curve, the plane heterogeneity and the variation of remaining dynamic reserves on the production capacity at different stages in the early and middle stages are clarified. (3)Through the implementation of development strategies optimization, the breakthrough of single well production has been achieved. The average absolute open flow rate of the new technology well were 2.3 times of the vertical well, the proportion of stable production increased from 80.5% to 95%, and the tubing pressure decline rate slowed down, which basically met the design requirements of the development scheme. The research results from the controlling factors of productivity in the early and middle stage and the development optimization technical countermeasures provide technical reference for the efficient exploration and development of ultra-deep strong heterogeneity carbonate gas reservoirs.
Keywords：Central Sichuan Basin
;
Sinian Deng 4 Member gas reservoir
;
Dominating factors of productivity
;
High-quality reservoir
;
Transformation
;
Far well area
;
Reserves
;
Development strategies optimization
CAI Junjun, PENG Xian, LI Qian, ZHAN Tianhui, ZHU Zhanmei, LI Wen, ZHAO Xiang, ZHANG Fei, JIANG Jun. Controlling factors of productivity in early and middle stage of ultra-deep and highly heterogenous gas reservoir and development strategies optimization: Case study of Sinian gas reservoirs in Anyue gas field, central Sichuan Basin. Natural Gas Geoscience[J], 2021, 32(11): 1622-1633 doi:10.11764/j.issn.1672-1926.2021.08.016

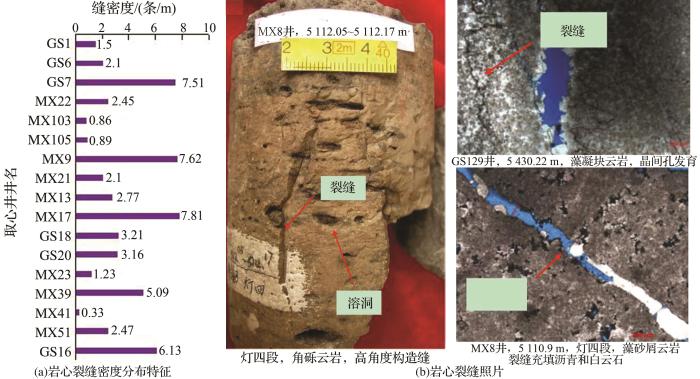

Fig.7
Core photo, microscopic chip and histogram of macroscopic fracture density distribution in coring section of the 4th Member of Dengying Formation
Table 2
表2
表2灯四段优质储层近井区改造效果描述
Table 2 Description of improvement effect near well area of high quality reservoir in the fourth member of Dengying Formation
SHEN A J， SHOU J F， ZHANG B M， et al. Characteristics， Genesis and Distribution of Marine Carbonate Reservoirs in China［M］.Beijing：Petroleum Industry Press，2016.
Langfang Branch of China Petroleum Exploration and Development Research Institute. Classification of natural gas reservoirs： GB/T 26979-2011［S］. Beijing： National Standards of China，2012.
MA X H， LI X Z， LIANG F，et al. Dominating factors on well productivity and development strategies optimization in Weiyuan shale gas play， Sichuan Basin， SW China［J］. Petroleum Exploration and Development， 2020，47（3）：125-133.
FENG J W， ZHAO L B， WANG Y D. Controlling factors for productivity of ultra-deep tight reservoirs in Keshen Gas Field， Kuqa Depression［J］.Acta Petrolei Sinica，2020，41（4）：106-116.
MENG X L， LAN Y F， ZHANG H B， et al. Hydrocarbon accumulation characteristics and main productivity control factors of deep tight sandstone in the south of Ordos Basin［J］. Journal of Xi'an Petroleum University （Natural Science Edition），2020，35（5）：9-13.
ZHENG C， WEI L F， WANG X C， et al. Analysis of influencing factors and prediction of gas well productivity in Carboniferous gas reservoirs in east Sichuan［J］.Natural Gas Industry，2002，22（4）：106-107.
XIE J， ZHAO S X， SHI X W， et al. Main geological factors controlling high production of horizontal shale gas wells in the Sichuan Basin［J］. Natural Gas Industry，2017，37（7）：1-12.
ZHU X， XIAO F S， HONG H T， et al. Seismic model and wellbore trajectory design for high-yield wells of tight channel sandstone gas reservoirs，central Sichuan Basin［J］.Natural Gas Exploration and Development，2020，43（3）：86-93.
GU Y F， ZHOU L， JIANG Y Q， et al. Reservoir types and gas well productivity models for Member 4 of Sinian Dengying Formation in Gaoshiti Block， Sichuan Basin［J］.Acta Petrolei Sinica，2020，41（5）：574-583.
ZHU X， GU Y F， JIANG Y Q， et al. Characteristics and reservoir body classification & evaluation of Sinian Dengying karst reservoirs in the Gaoshiti block of central Sichuan Basin［J］.Natural Gas Industry，2019，39（3）：44-52.
YANG S L， XIAO X J， WANG X Q， et al. Rock stress sensitivity of abnormally high pressure gas reservoir and its effect on productivity［J］. Natural Gas Industry，2005，25（5）：94-95.
XU H J， FAN M G， KANG Z， et al. A productivity prediction equation considering rock permeability stress-sensitivity in low-permeability gas reservoirs［J］. Natural Gas Geoscience，2008，19（1）：145-147.
SONG C Z， ZHENG R C. Stress sensitivity of low-permeability tight gas reservoir and its effect on single well productivity［J］. Petroleum Geology & Oilfield Development in Daqing，2006，25（6）：47-49.
WANG Y H， CHENG S Q， FU H， et al. Analysis on gas well productivity of low-permeability gas reservoir with stress-sensitivity［J］. Well Testing，2017，26（1）：6-9，75.
ZHANG X L， YANG Z X. Impacts of start-up pressure gradient on features of transient seepage flow in low-permeability gas reservoirs ［J］. Well Testing，2018，27（3）：7-13.
ZHANG L H， LIANG B， LIU Q G， et al. A new deliverability equation considering slippage effect for gas reservoirs with low permeability and low pressure［J］.Natural Gas Industry，2009，29（1）：76-78.
WANG D L，WANG X W，YAN J，et al. Study on the influence of non-Darcy effects on the gas well productivity in low-permeability gas reservoirs［J］. Special Oil and Gas Reservoir，2012，19（5）：97-99.
TANG L， GUO X， MIAO Y P， et al. Impact of non-Darcy seepage effect on deliverability of horizontal wells in low permeability gas reservoirs［J］.Fault-Block Oil &Gas Field，2013，20（5）：607-610.
ZHANG L H， LI C Y， LIU Q G， et al. Interpretation theory of gas well productivity test for high-sulfur gas reservoirs［J］. Natural Gas Industry，2008，28（4）：86-88.
ZHANG R， SUN B， QIN L S， et al. Research progress on productivity evaluation of gas wells after water breakthrough［J］. Fault-Block Oil and Gas Fields，2018，25（1）：62-65.
LUO B， ZHOU G， LUO W J， et al. Discovery from exploration of Lower Paleozoic-Sinian system in central Sichuan Palaeo-uplift and its natural gas abundance law［J］.China Petrole-um Exploration，2015，20（2）：18-29.
YANG Y， WEN L， XIE J R， et al. Progress and direction of marine carbonate gas exploration in Sichuan Basin［J］.China Petroleum Exploration，2020，25（3）： 44-55.
CAI J J， PENG X， LI Q， et al. Subdivision of strongly heterogeneous carbonate gas reservoir and technical countermeasures in different production stages： Taking the Sinian in Sichuan Basin as an example［J］.Natural Gas Geoscience，2021，32（6）：851-860.
FENG X， PENG X， LI Q， et al. A new method for evaluating the unstable deliverability of gas wells in gas formation testing phase［J］.Natural Gas Industry，2020，40（4）：59-68.
CAI J J，PENG X，LI Q，et al.Present situation and prospect of productivity of key marine carbonate gas reservoirs in Sichuan Basin［J］. Fault-Block Oil &Gas Field，2021，28（5）：655-660.
MENG F K，LEI Q，HE D B，et al. Well test interpretation model for deviated wells in tri⁃porosity⁃media and homogeneous composite carbonate gas reservoirs［J］. Xinjiang Petroleum Geology，2018，39（5）：591-596，626.
LIU H T， YANG X T， ZHOU P Y， et al. Application of binary compound storage model in well test interpretation for Halahatang carbonate rock［J］. Well Testing，2016，25（4）：26-28，32.
TIAN X W，PENG H L，WANG Y L，et al. Analysis of reservoir difference and controlling factors between the platform margin and the inner area of the fourth member of Sinian Dengying Formation in Anyue Gas Field， central Sichuan［J］.Natural Gas Geoscience，2020，31（9）：1225-1238.
CAI J J， LIANG F，ZHAN T H， et al. Application of dynamic and static data in recognition of Sinian carbonate reservoir types in the Moxi-Gaoshiti areas，Sichuan Basin［J］.Natural Gas Geoscience，2020，31（1）：132-142.
Southwest Oil and Gas Field Company of PetroChina. Phase II development plan of Deng 4 gas reservoir in Gaoshiti-Moxi block of Anyue Gas Field［R］. Chengdu： Southwest Oil and Gas Field Company of PetroChina， 2017：119.
ZHU Z P， LUO W J， PAN R F， et al. The paleogeomorphology restoration of Sinian Deng 4 Member and its control on reservoir formation in the Gaoshiti-Moxi area in central Sichuan Basin［J］.China Petroleum Exploration，2019，24（6）：730-738.
LIU X X， DAN Y， LUO W J， et al. Characterization of karst paleo-geomorphology and the paleo-water system on the top of the 4th member of the Dengying Formation in the Gaoshiti area，Sichuan Basin［J］. Carsologica Sinica，2020，39（2）：206-214.
TIAN X W，ZHANG X H，PENG H L， et al. Productivity differences of gas reservoirs in the fourth member of Sinian Dengying Formation in Gaoshiti-Moxi area， central Sichuan Basin［J］.Xinjiang Petroleum Geology，2019，40（6）：673-679.
