徐加祥(1991-),男,山东泰安人,博士研究生,主要从事油气藏增产改造技术研究. E-mail:shigong101121@163.com. |
收稿日期: 2019-01-08
修回日期: 2019-04-16
网络出版日期: 2019-10-14
基金资助
国家科技重大专项“致密油储层高效体积改造技术”(2016ZX05046-004)
Stress sensitivity analysis of the shale reservoir by the quartet structure generation set
Received date: 2019-01-08
Revised date: 2019-04-16
Online published: 2019-10-14

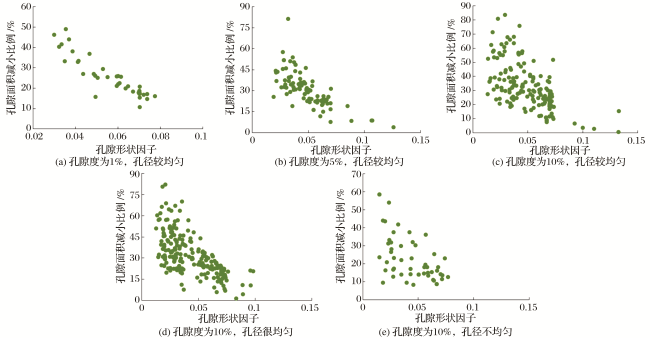

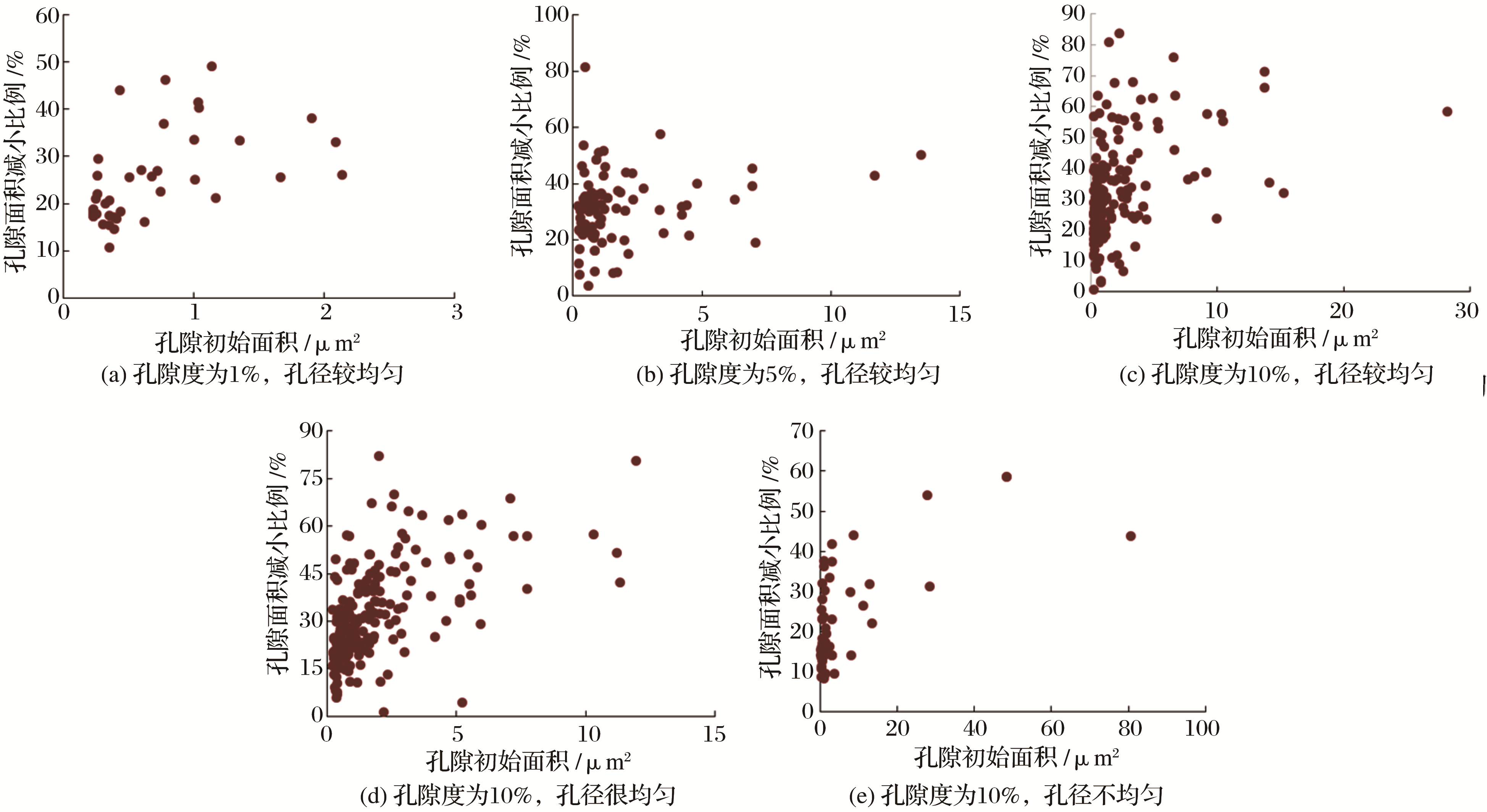

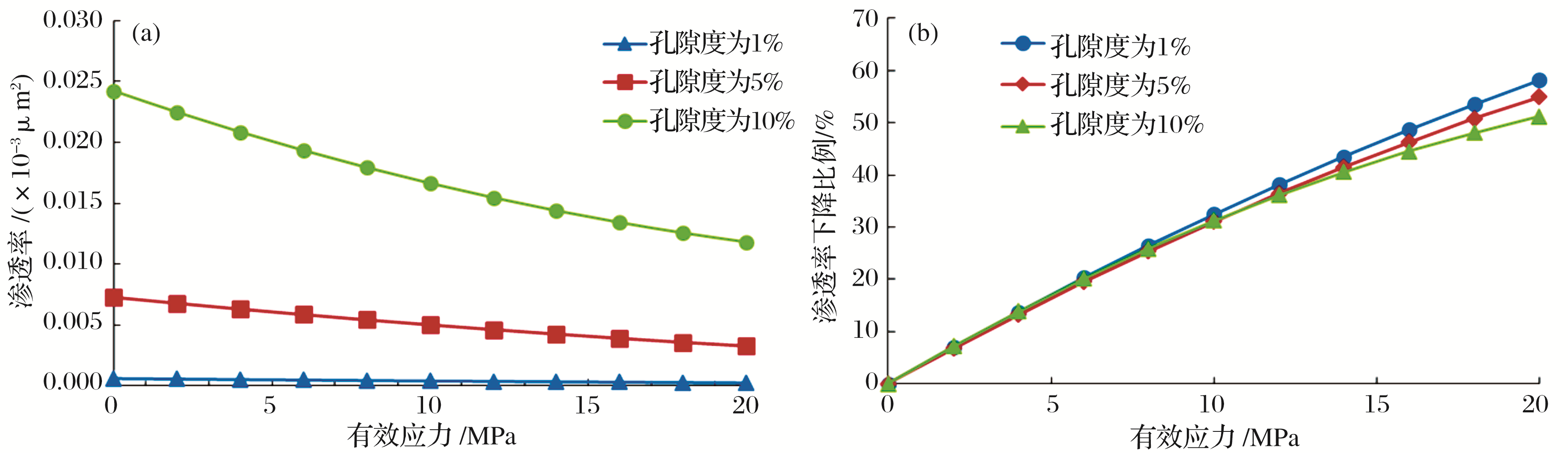

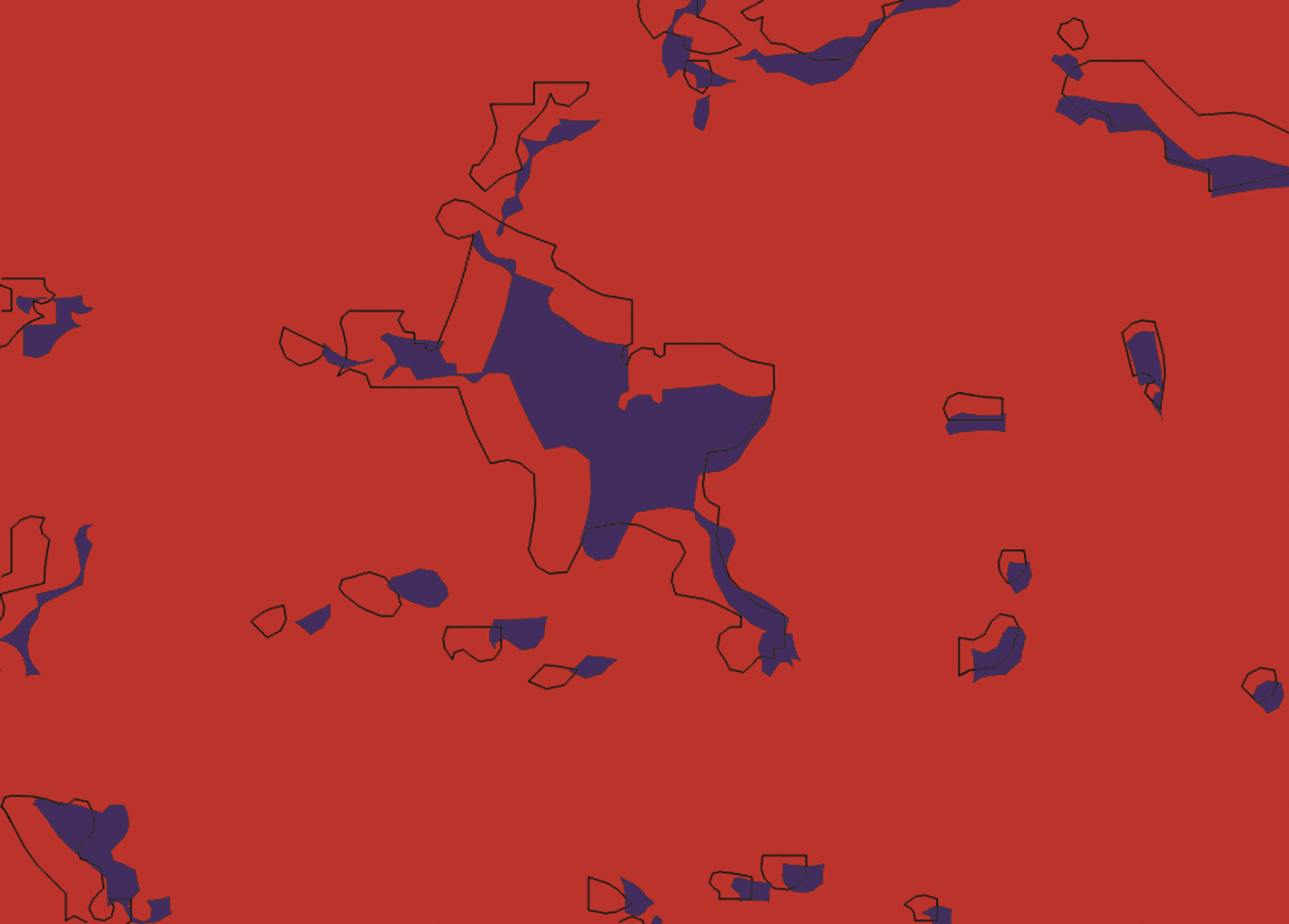

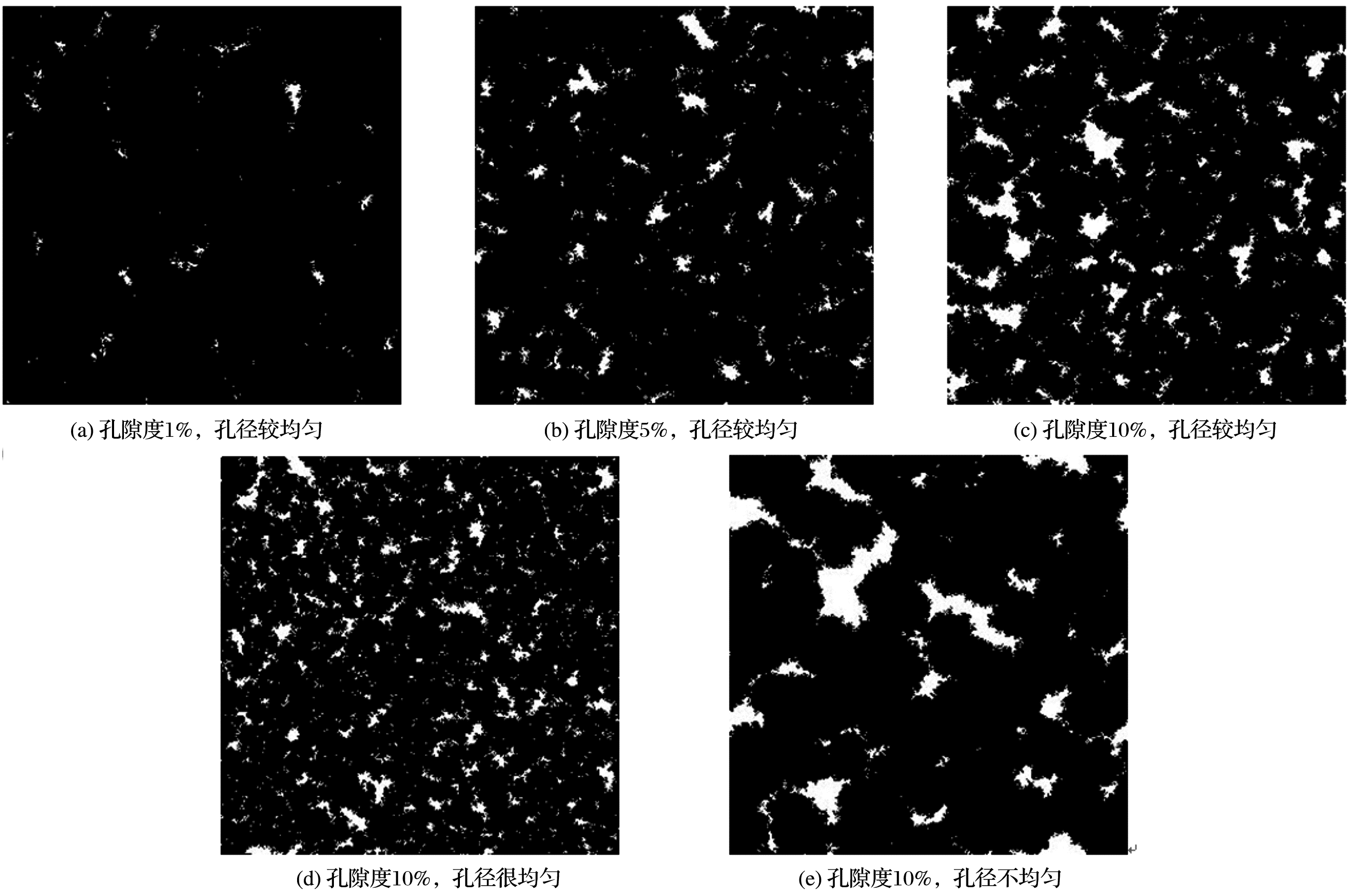

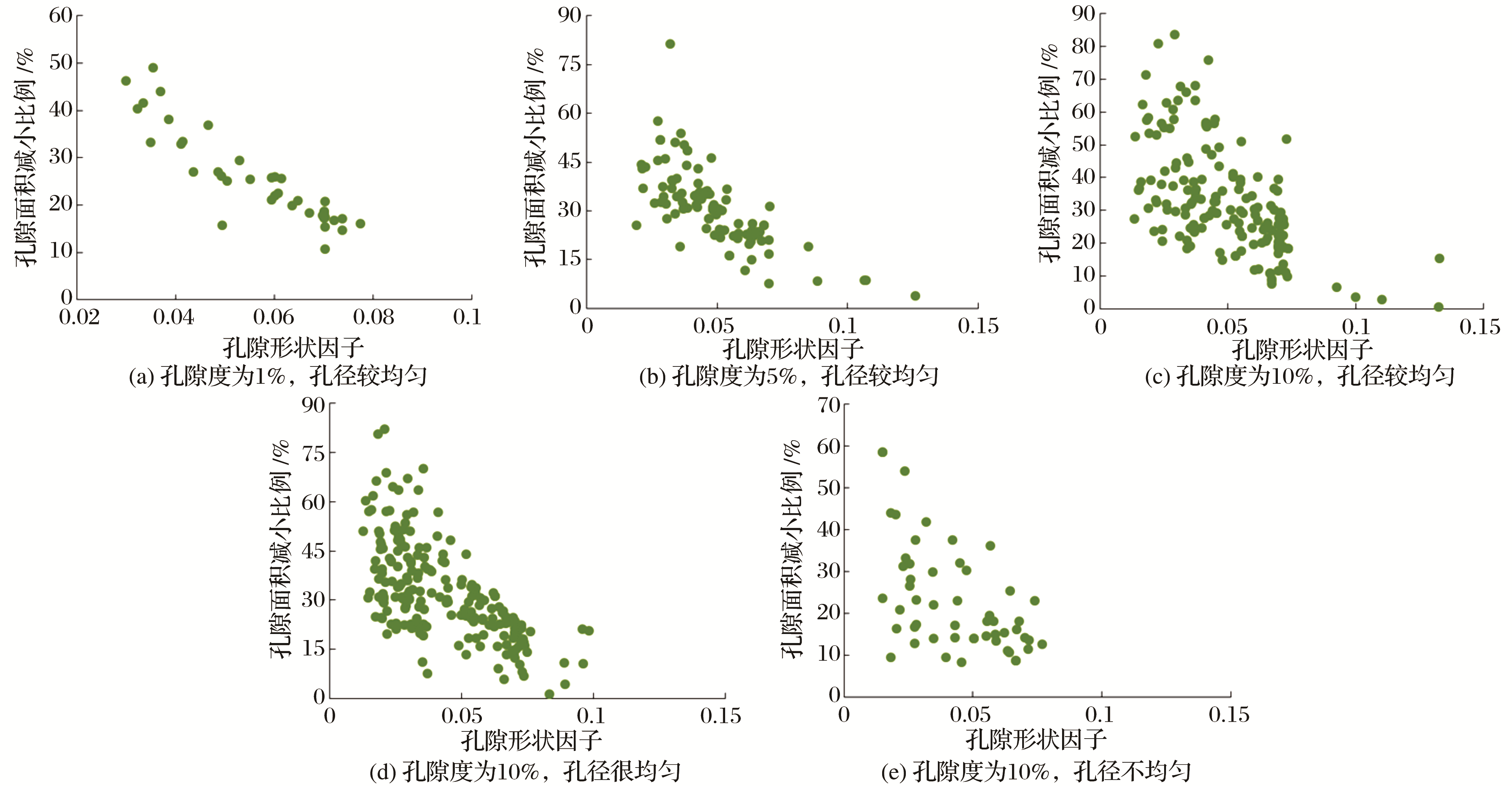

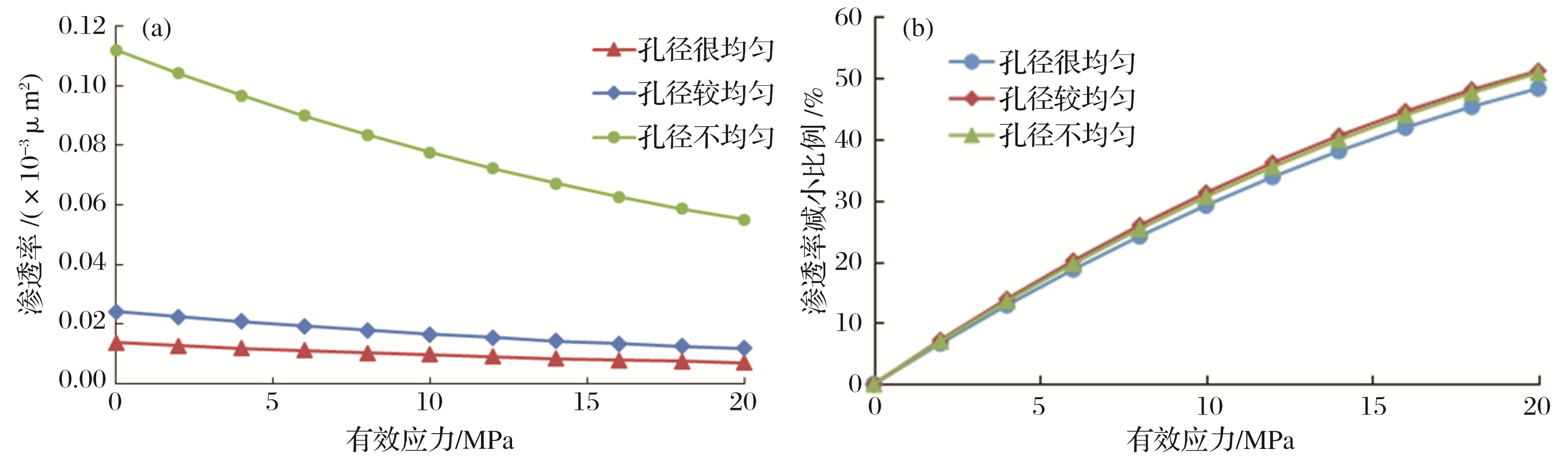

页岩储层的应力敏感性是影响其后期开发效果的关键因素,从微观的角度深入认识其应力敏感机理及其影响因素对页岩气的开发具有重要意义。借助四参数随机生长模型构建了不同孔隙度和不同孔隙大小分布的岩心样本,利用弹性力学理论模拟了不同有效应力作用下各个岩心孔隙半径的分布变化及其对岩心固有渗透率的影响,深入分析了孔隙大小及其形状因子与上述两者之间的关系。结果表明,导致页岩应力敏感的直接原因是有效应力作用下孔隙面积的减小及孔隙位置的迁移。有效应力的增大使得各孔隙半径均有减小,孔隙半径的减小比例分别与孔隙初始面积和孔隙的形状因子呈正相关关系和负相关关系。在相同的孔隙度条件下,孔隙半径越均匀,平均孔隙半径越小,应力敏感性越强。有效应力的增加使得岩心固有渗透率呈指数型下降且孔隙度越小、固有渗透率越低的岩心,其应力敏感性越强,孔隙度对固有渗透率的影响大于孔隙半径均匀性的影响。
徐加祥 , 杨立峰 , 丁云宏 , 刘哲 , 高睿 , 王臻 . 基于四参数随机生长模型的页岩储层应力敏感分析[J]. 天然气地球科学, 2019 , 30(9) : 1341 -1348 . DOI: 10.11764/j.issn.1672-1926.2019.04.014
The stress sensitivity of permeability in the shale reservoir is the key factor influencing its later development effect. It is of great significance for shale gas development to deeply understand its stress sensitivity mechanism and its influencing factors from the microscopic point of view. In this paper, core samples with different porosity and pore size distribution are constructed by means of the quartet structure generation set. The variation of pore radius distribution and its influence on intrinsic permeability of cores under different effective stress are simulated by using elasticity theory. The relationship between pore size and shape factor and the above two parameters is deeply analyzed. The results show that the direct cause of shale stress sensitivity is the decrease of pore area and the migration of pore position under effective stress. With the increase of effective stress, the pore radius decreases. The proportion of reduction of pore radius is positively and negatively correlated with the initial pore area and the pore shape factor, respectively. Under the same porosity condition, the more uniform the pore radius, the stronger the stress sensitivity. With the increase of effective stress, the intrinsic permeability of core decreases exponentially, and the smaller the porosity and the lower the intrinsic permeability, the stronger the stress sensitivity of core, and the effect of porosity on intrinsic permeability is obviously greater than that of pore radius uniformity.
1 |
邹才能, 张国生, 杨智, 等 . 非常规油气概念、特征、潜力及技术——兼论非常规油气地质学[J]. 石油勘探与开发, 2013, 40(4): 385-399, 454.
|
2 |
邹才能, 朱如凯, 吴松涛, 等 . 常规与非常规油气聚集类型、特征、机理及展望——以中国致密油和致密气为例[J]. 石油学报, 2012,33(2):173-187.
|
3 |
朱维耀, 马东旭, 朱华银, 等 . 页岩储层应力敏感性及其对产能影响[J]. 天然气地球科学,2016, 27(5): 892-897.
|
4 |
田冷, 李鸿范, 马继翔, 等 . 基于启动压力梯度与应力敏感的致密气藏多层多级渗流模型[J]. 天然气地球科学, 2017, 28(12): 1898-1907.
|
5 |
|
6 |
|
7 |
|
8 |
郭为, 熊伟, 高树生 . 页岩气藏应力敏感效应实验研究[J]. 特种油气藏, 2012, 19(1): 95-97.
|
9 |
张睿, 宁正福, 杨峰, 等 . 微观孔隙结构对页岩应力敏感影响的实验研究[J]. 天然气地球科学, 2014, 25(8): 1284-1289.
|
10 |
张睿, 宁正福, 张海山, 等 . 裂缝性致密储层应力敏感机理新认识[J]. 天然气地球科学, 2016, 27(5): 918-923.
|
11 |
张睿, 宁正福, 杨峰, 等 . 页岩应力敏感实验与机理[J]. 石油学报, 2015, 36(2): 224-231, 237.
|
12 |
肖文联, 李滔, 李闽, 等 . 致密储集层应力敏感性评价[J]. 石油勘探与开发, 2016, 43(1): 107-114.
|
13 |
雷刚, 王昊, 董平川, 等 . 非均质致密砂岩应力敏感性的定量表征[J]. 油气地质与采收率, 2015, 22(3): 90-94.
|
14 |
李传亮 . 岩石应力敏感指数与压缩系数之间的关系式[J]. 岩性油气藏, 2007, 19(4): 95-98.
|
15 |
|
16 |
|
17 |
朱益华, 陶果 . 顺序指示模拟技术及其在3D数字岩心建模中的应用[J]. 测井技术, 2007, 31(2): 112-115.
|
18 |
赵秀才, 姚军, 陶军, 等 . 基于模拟退火算法的数字岩心建模方法[J]. 高校应用数学学报: A辑, 2007, 22(2): 127-133.
|
19 |
李仁民, 刘松玉, 方磊, 等 . 采用随机生长四参数生成法构造黏土微观结构[J]. 浙江大学学报: 工学版, 2010, 44(10): 1897-1901.
|
20 |
申林方,王志良,李邵军 . 基于土体细观结构重构技术的渗流场数值模拟[J]. 岩土力学, 2015, 36(11): 3307-3314.
|
21 |
|
22 |
魏元龙, 杨春和, 郭印同, 等 . 三轴循环荷载下页岩变形及破坏特征试验研究[J]. 岩土工程学报, 2015, 37(12): 2262-2271.
|
23 |
|
24 |
李荣强, 高莹, 杨永飞, 等 . 基于CT扫描的岩心压敏效应实验研究[J]. 石油钻探技术, 2015, 43(5): 37-43.
|
/
〈 |
|
〉 |
