0 引言
表1 吉15井石炭系—二叠系烃源岩综合评价(部分数据来源于文献[21-22])Table 1 Comprehensive evaluation of Carboniferous-Permian source rocks in Well J15 (partial date based on Refs.[21-22]) |
层位 | 深度 /m | 岩性 | 有机质丰度评价 | 有机质类型评价 | 有机质成熟度评价 | 烃源岩 综合评价 | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TOC /% | (S 1+S 2) /(mg/g) | 氯仿沥青 “A”含量 /% | I H/ (mg/g) | 氯仿沥青“A”碳同位素/‰ | 有机组分含量/% | 类型 指数 TI | T max /℃ | R O /% | ββ/(ββ+αα)C29 甾烷 | |||||||
腐泥组 | 壳质组 | 镜质组 | 惰质组 | |||||||||||||
P2 l 2 | 2 280.68 | 灰质泥岩 | 5.92 | 17.88 | 0.416 2 | 295.44 | -31.66 | 429 | 1.00? | 0.24 | 高丰度Ⅱ2型 未熟油源岩 | |||||
C1 s b | 2 858.79 | 炭质泥岩 | 25.30 | 42.33 | 145.49 | 432 | 高丰度Ⅲ型 低熟气源岩 | |||||||||
2 860.02 | 炭质泥岩 | 38.77 | 31.09 | 0.448 3 | 79.11 | -25.61 | 4.30 | 12.60 | 54.90 | 28.20 | -58.78 | 437 | 0.68 | 0.23 | ||
2 860.51 | 炭质泥岩 | 39.30 | 79.14 | 177.96 | 432 | |||||||||||
2 860.77 | 煤 | 41.20 | 36.49 | 0.588 9 | 86.94 | -25.53 | 436 | 0.64 | 0.21 | |||||||
2 860.94 | 煤 | 41.10 | 37.42 | 83.59 | 433 | |||||||||||
2 863.95 | 炭质泥岩 | 29.50 | 29.45 | 97.73 | 432 | |||||||||||
2 865.00 | 炭质泥岩 | 29.32 | 28.67 | 0.294 9 | 96.96 | -25.43 | 10.00 | 10.00 | 65.00 | 15.00 | -48.80 | 431 | 1.00 | 0.20 | ||
2 878.98 | 炭质泥岩 | 25.10 | 57.06 | 210.20 | 6.83 | 13.47 | 76.18 | 3.52 | -47.09 | 432 |
1 地质特征

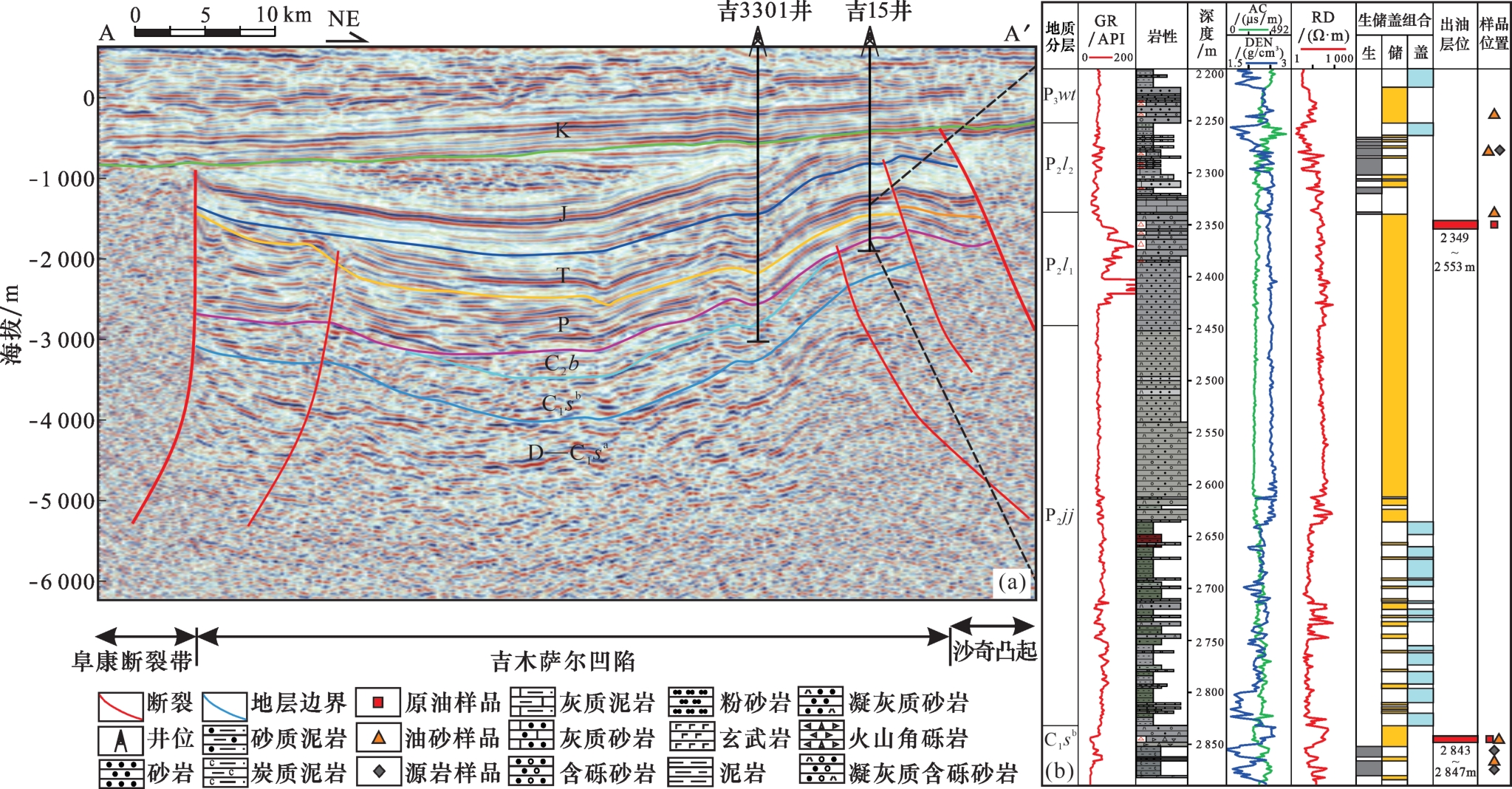

1.1 构造、地层特征
1.2 钻遇烃源岩特征
2 原油特征与类型划分

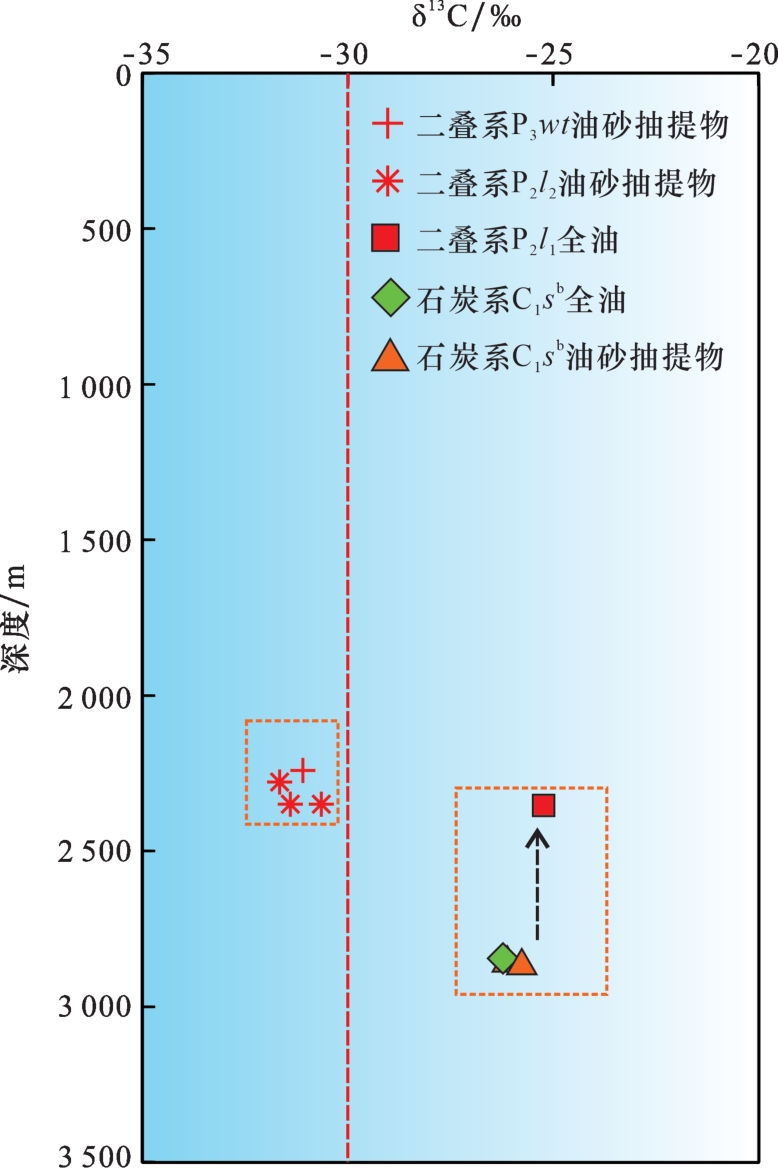

2.1 原油与沥青特征

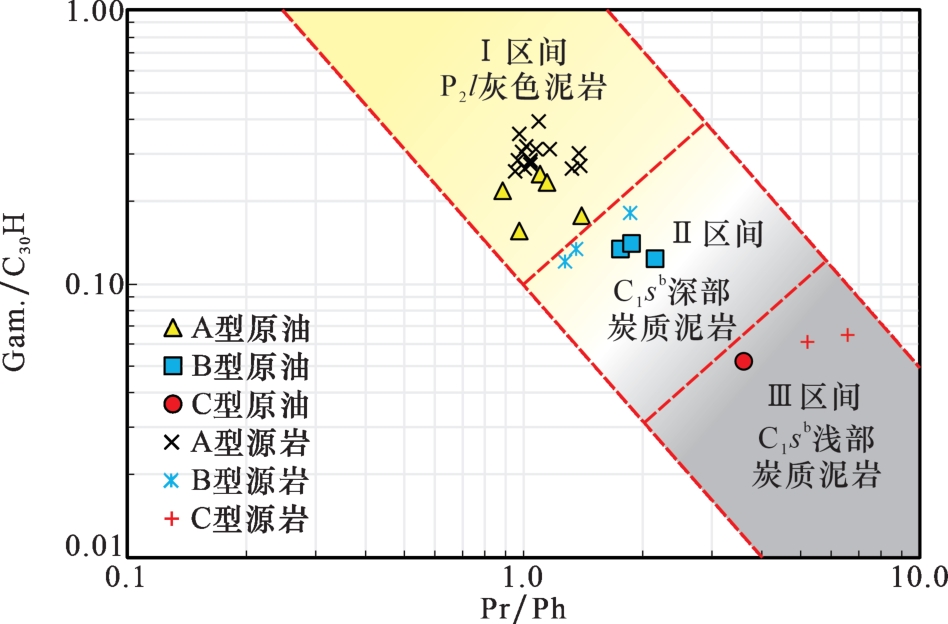

2.2 原油类型划分

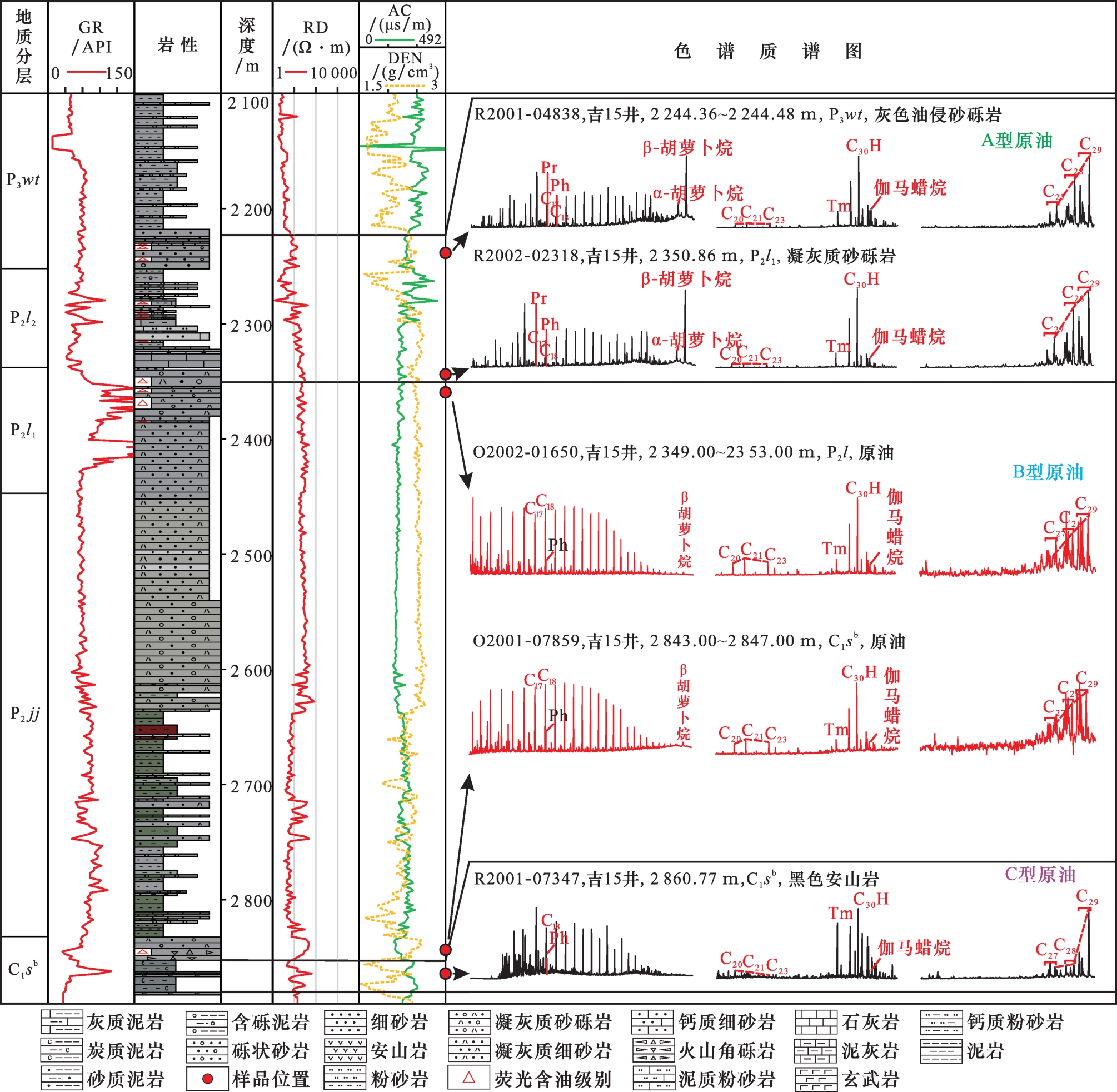

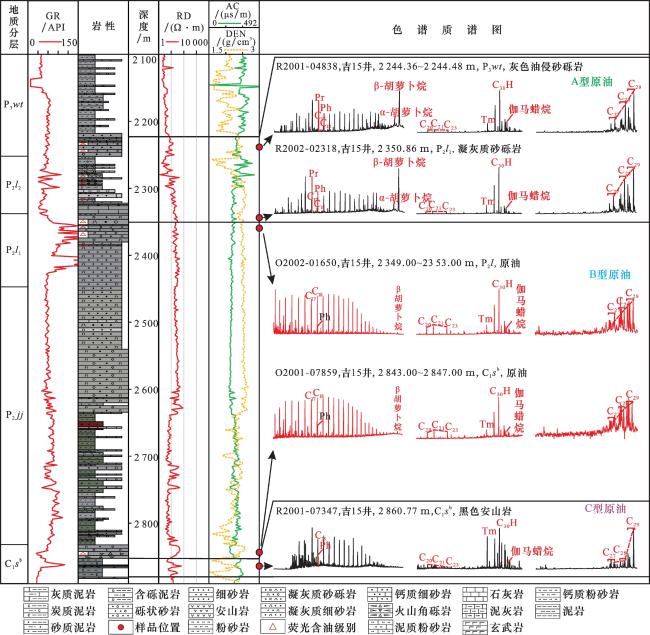

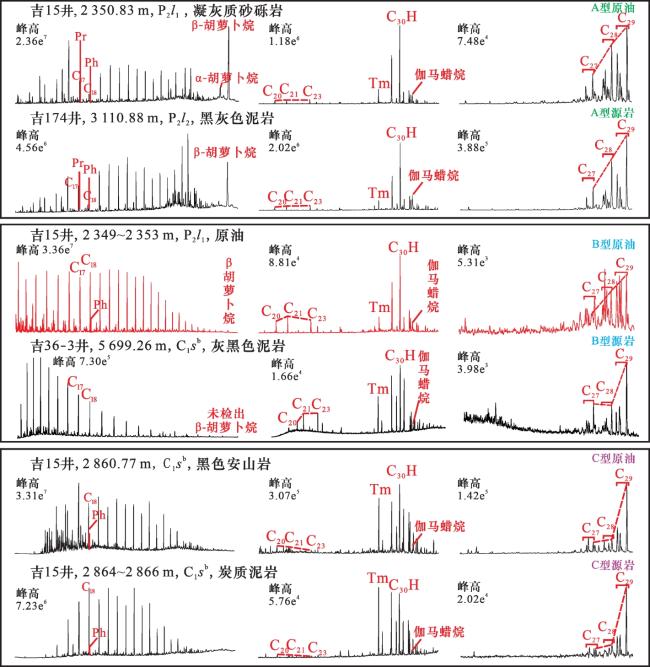

图7 吉15井石炭系—二叠系3类原油气相色谱—质谱Fig.7 Gas chromatogram-mass spectrometry (GC-MS) analysis of three types of crude oil samples from the Carboniferous-Permian in Well J15 |
表2 吉15井石炭系—二叠系3类原油典型生物标志物特征Table 2 Typical biomarker parameters of three types of crude oils from the Carboniferous-Permian in Well J15 |
原油/沥青类型 | 层位,深度/m | 沉积环境与生源参数 | ||||
---|---|---|---|---|---|---|
A | B | C | D | E | ||
A类 | P3 wt P2 l 1 P2 l 1 | 0.37~0.82(0.63) | 0.98~1.15(1.08) | 2.09~2.66(2.32) | 3.05~3.23(3.12) | 0.11~0.25(0.20) |
B类 | P2 l 1 C1 s b C1 s b | 1.25~1.86(1.49) | 1.76~2.16(1.93) | 0.29~0.32(0.31) | 0.14~0.19(0.16) | 0.12~0.14(0.13) |
C类 | C1 s b C1 s b C1 s b | 0.69~1.28(0.91) | 3.61~6.58(5.13) | 1.27~2.12(1.66) | 0.20~0.57(0.34) | 0.05~0.07(0.06) |
原油/沥青类型 | 层位,深度/m | 沉积环境与生源参数 | ||||
F | G | H | I | J | ||
A类 | P3 wt P2 l 1 P2 l 1 | 0.09~0.12(0.10) | 0.55~0.99(0.79) | 0.96~1.14(1.04) | 0.29~0.39(0.35) | 0.65~0.75(0.70) |
B类 | P2 l 1 C1 s b C1 s b | 0.18~0.28(0.22) | 0.81~0.89(0.85) | 1.18~1.30(1.25) | 0.32~0.43(0.36) | 0.62~0.76(0.68) |
C类 | C1 s b C1 s b C1 s b | 0.71~1.24(1.06) | 2.24~3.31(2.86) | 1.90~3.13(2.52) | 0.10~0.17(0.14) | 0.13~0.18(0.16) |
原油/沥青类型 | 层位,深度/m | 成熟度参数 | ||||
K | L | M | N | O | ||
A类 | P3 wt P2 l 1 P2 l 1 | 1.11~1.52(1.29) | 0.10~0.19(0.15) | 0.09~0.22(0.14) | 0.25~0.26(0.25) | 0.33~0.39(0.36) |
B类 | P2 l 1 C1 s b C1 s b | 1.17~1.21(1.19) | 0.52~0.56(0.54) | 0.27~0.31(0.29) | 0.50~0.53(0.52) | 0.46~0.48(0.47) |
C类 | C1 s b C1 s b C1 s b | 1.45~1.63(1.55) | 0.11~0.23(0.15) | 0.03~0.05(0.04) | 0.20~0.23(0.21) | 0.21~0.26(0.24) |
|
