0 引言

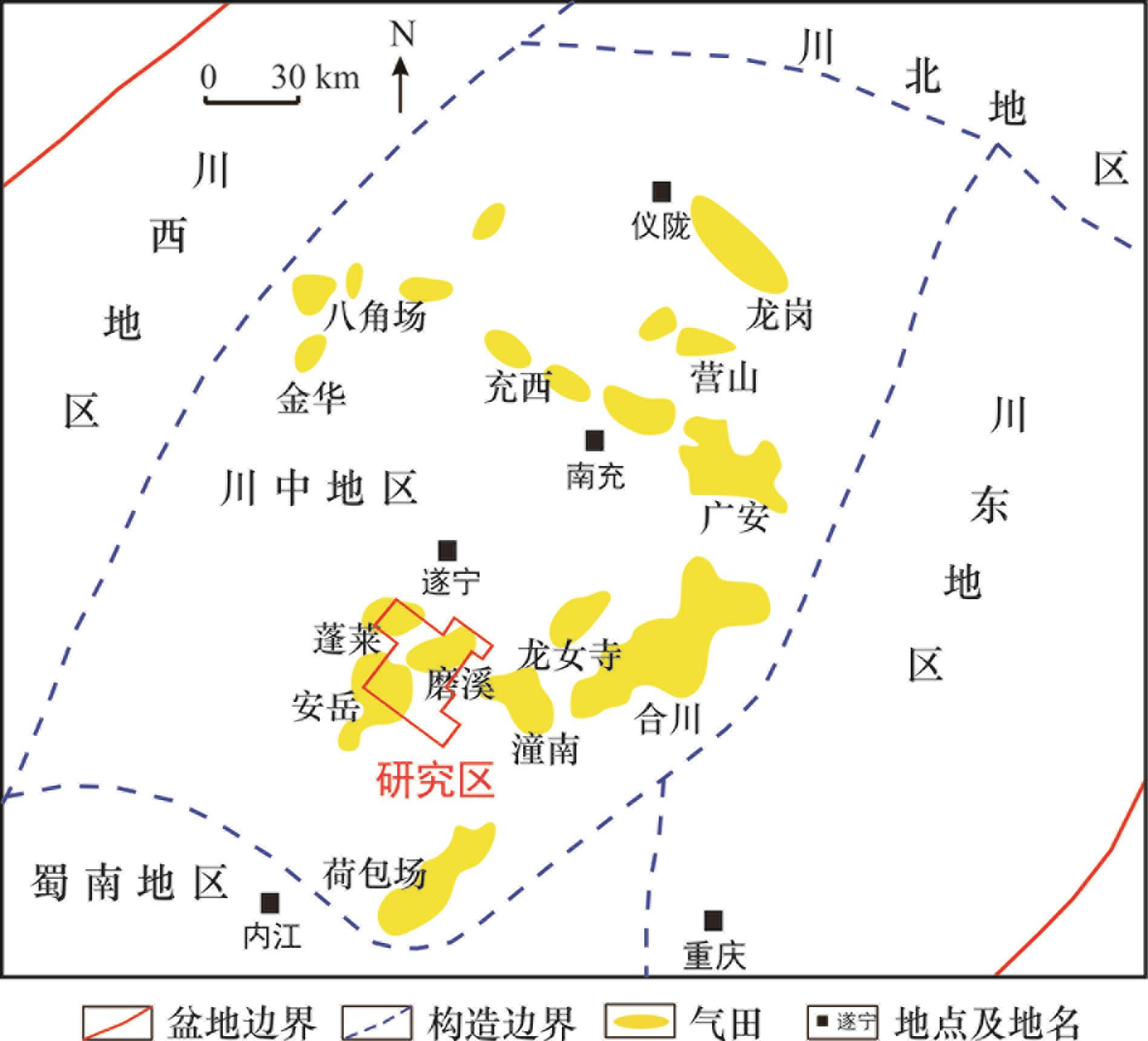

1 研究区概况
2 气藏富集主控因素

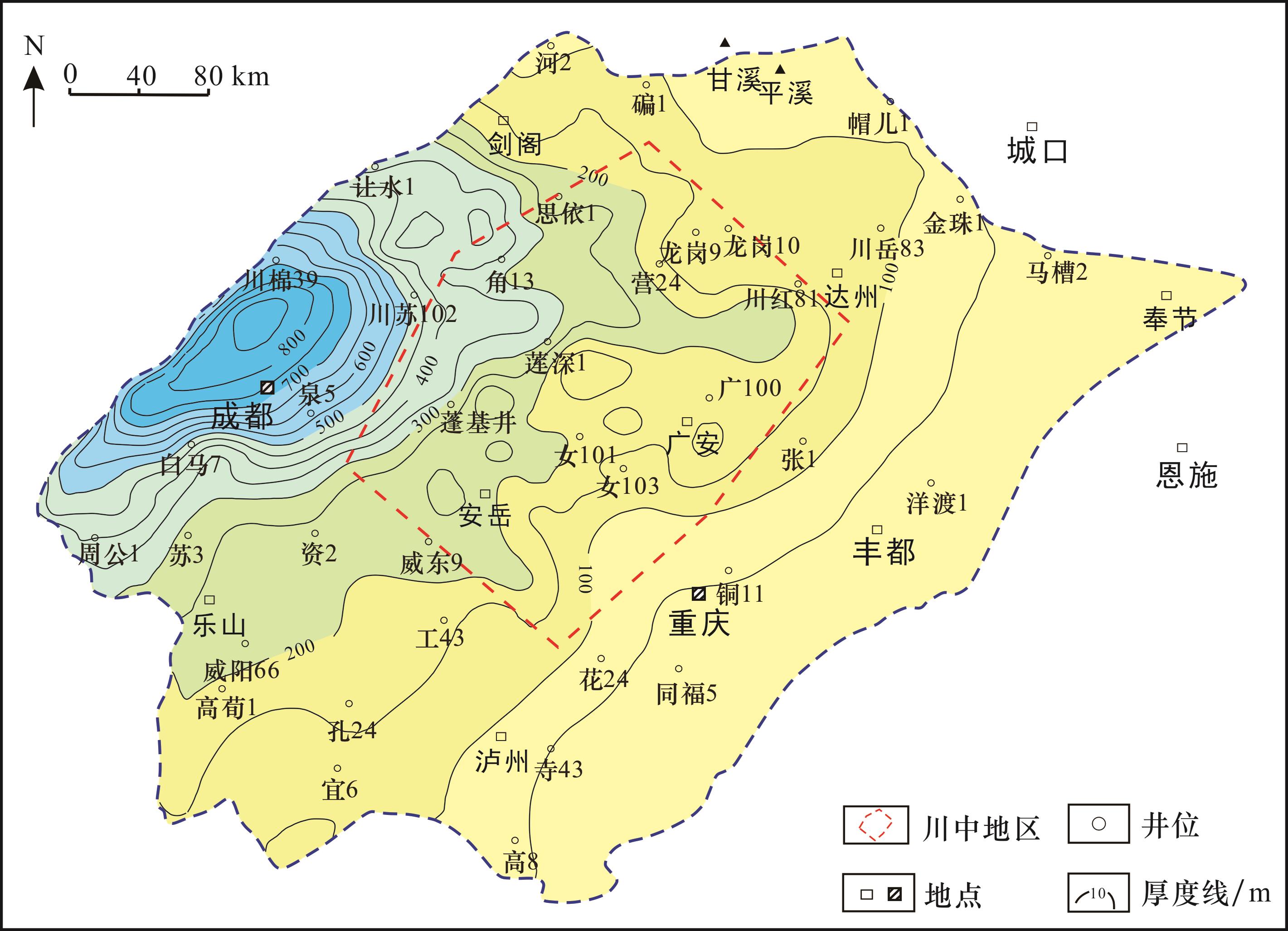

2.1 烃源岩条件
表1 川中地区须家河组烃源岩TOC含量与R O值域分布Table 1 TOC content and R O range distribution of Xujiahe Formation source rocks in central Sichuan Basin |
层段 | TOC/% | R O/% | ||
---|---|---|---|---|
分布值 | 平均值 | 主体分布值 | 最大值、最小值及均值 | |
须一段 | 0.09~6.16 | 1.32 | 1.25~1.75 | 最大:3.9 最小:0.7 均值:1.6 |
须三段 | 0.06~14.80 | 2.40 | ||
须五段 | 0.07~7.20 | 2.55 |
2.2 优质储层
表2 安岳气田须二段储层物性与测试产量Table 2 Reservoir physical properties and test production value of second member of Xujiahe Formation in Anyue gas field |
井位 | 气层累计厚度 /m | 储层孔隙度/% | 渗透率/(10-3 μm2) | 测试日产气量 /(104 m3) | ||
---|---|---|---|---|---|---|
分布值 | 平均值 | 分布值 | 平均值 | |||
岳118 | 18.5 | 7~12 | 8.6 | 0.01~0.3 | 0.12 | 30.64 |
岳114 | 12.3 | 7~12 | 9.7 | 0.05~0.45 | 0.13 | 10.81 |
岳122 | 13 | 7~10 | 7.8 | 0.05~0.12 | 0.08 | 微产气 |
岳106 | 10 | 8~13 | 0.1 | 0.2~1.1 | 0.5 | 4.52 |
岳111 | 18 | 7~11.5 | 8.9 | 0.05~0.4 | 0.16 | 7.28 |
岳113 | 9.5 | 7~10 | 8.1 | 0.03~0.08 | 0.05 | 微产气 |

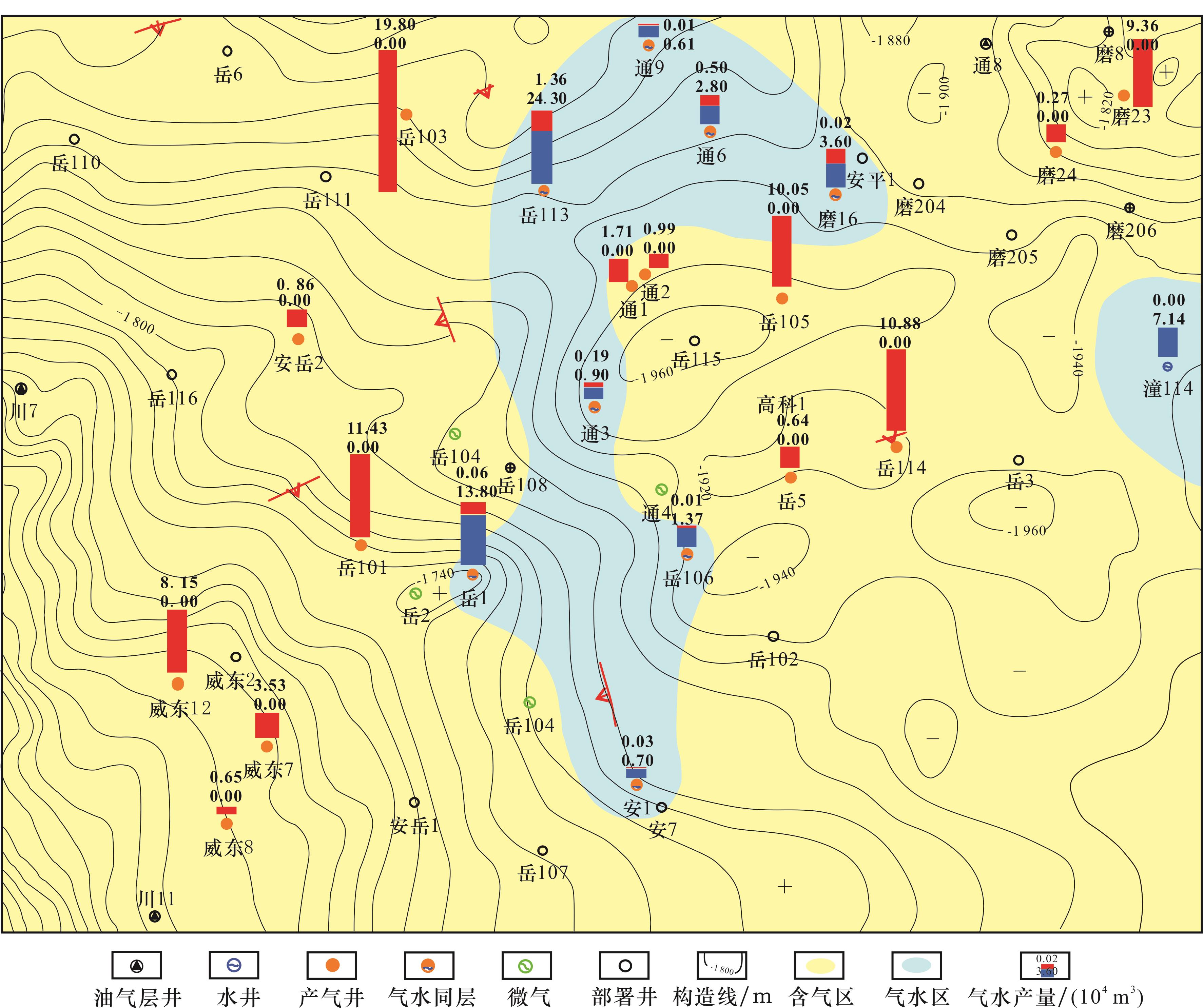

2.3 局部构造

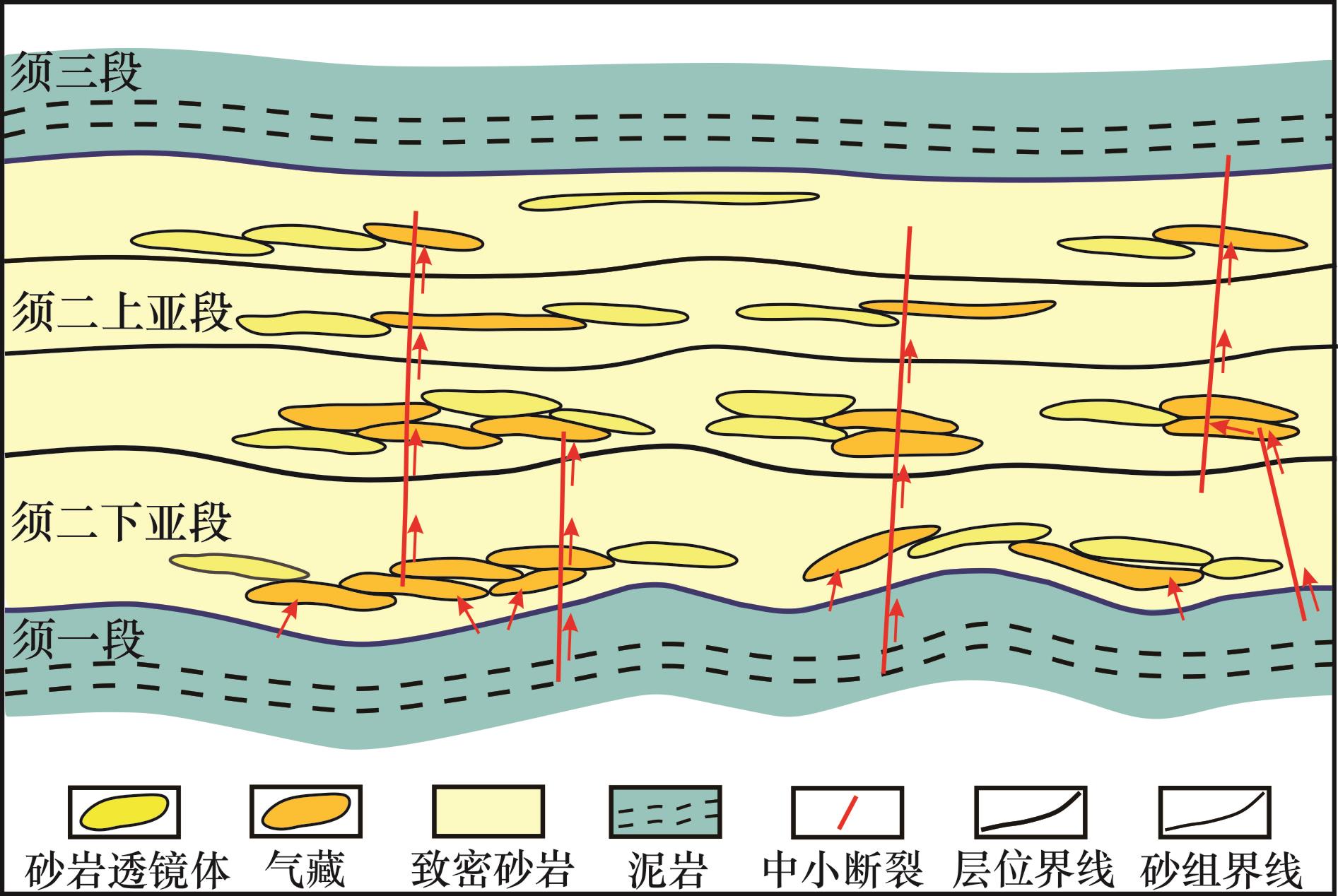

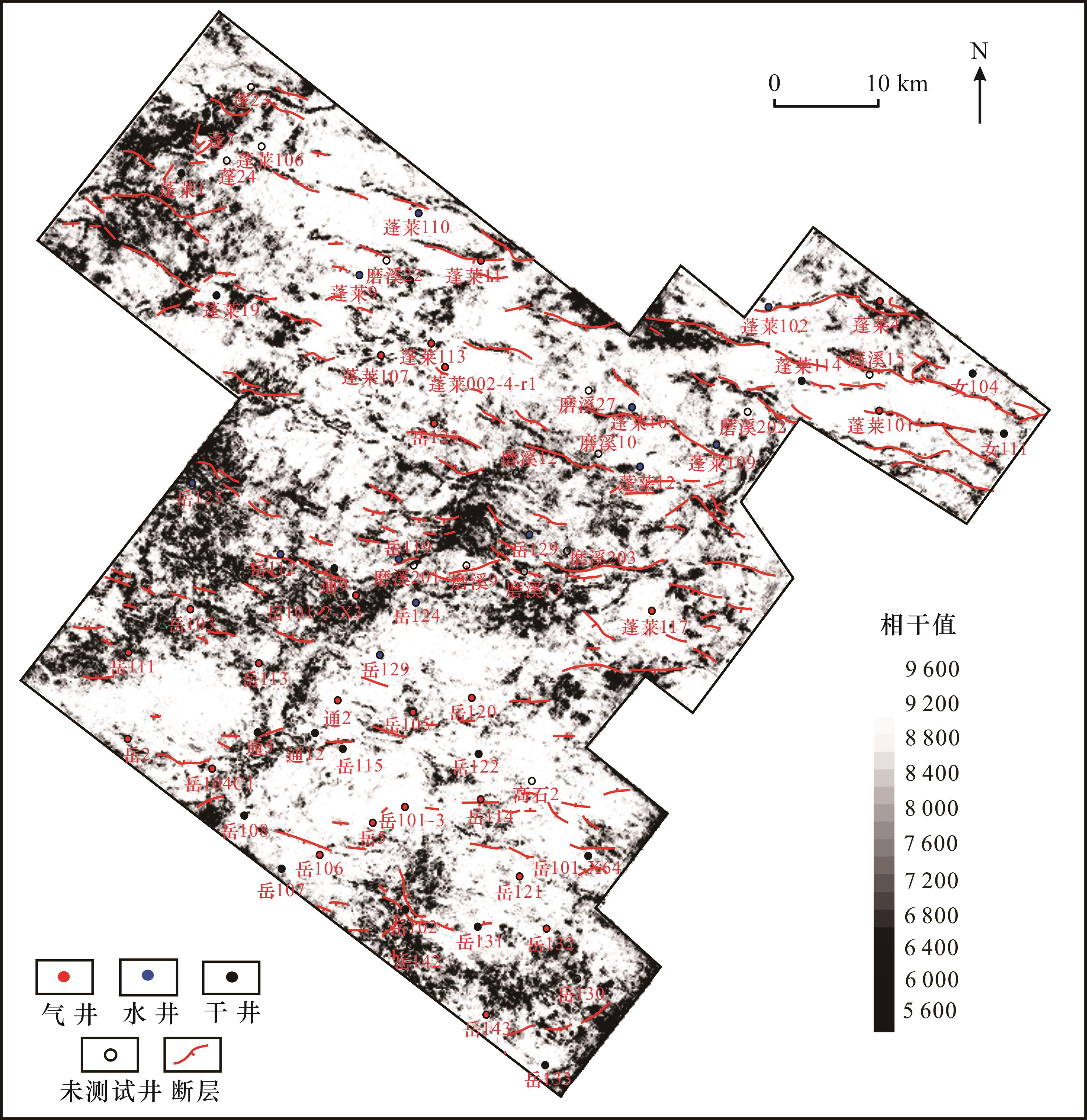

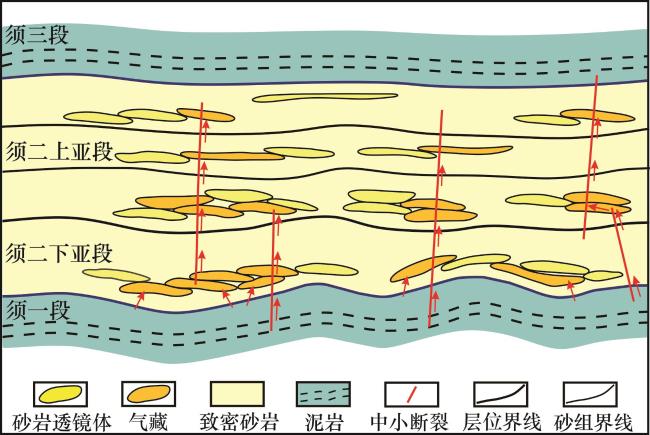

2.4 中、小断裂分布
3 须家河气藏地震预测

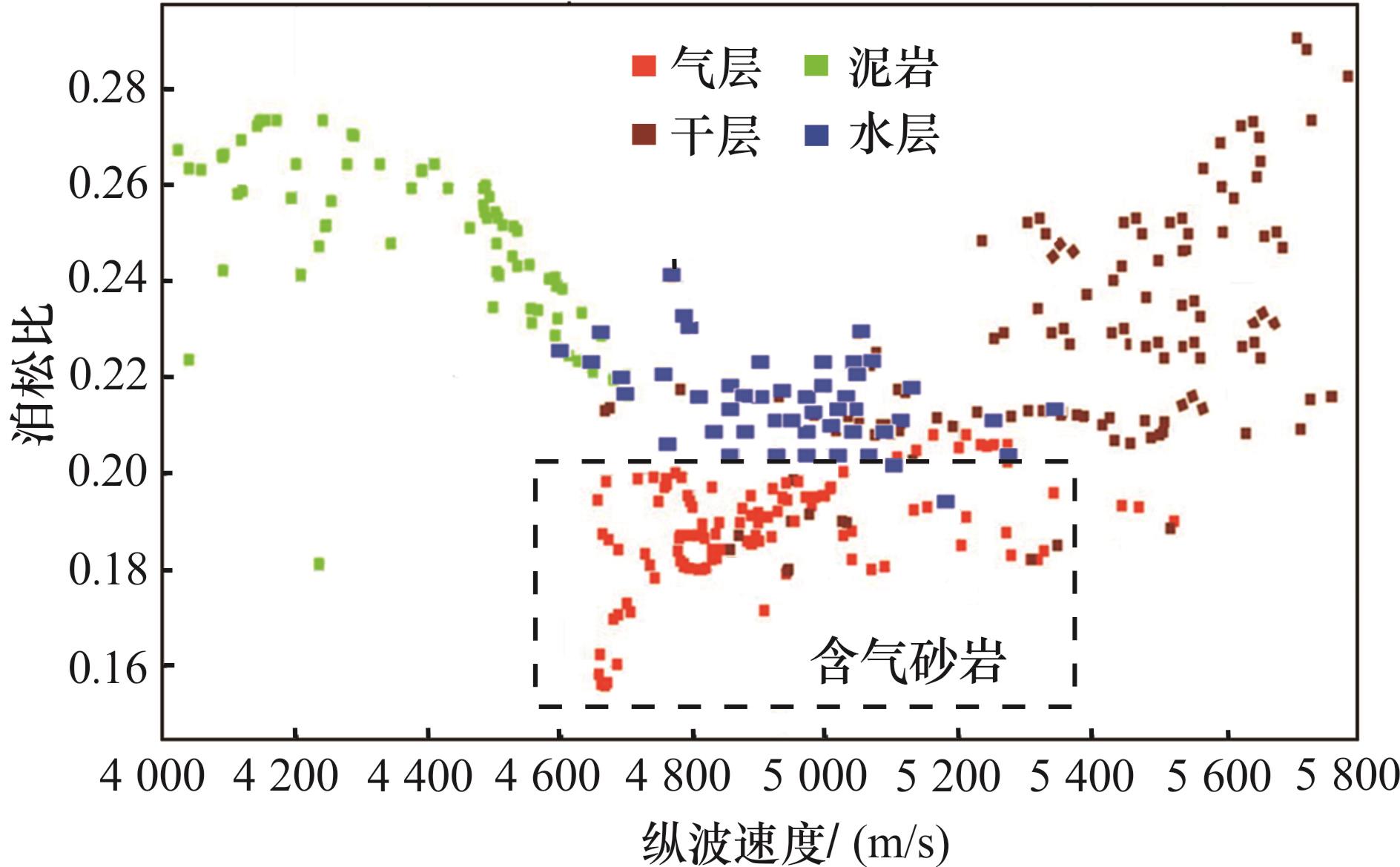

3.1 测井岩石物理分析

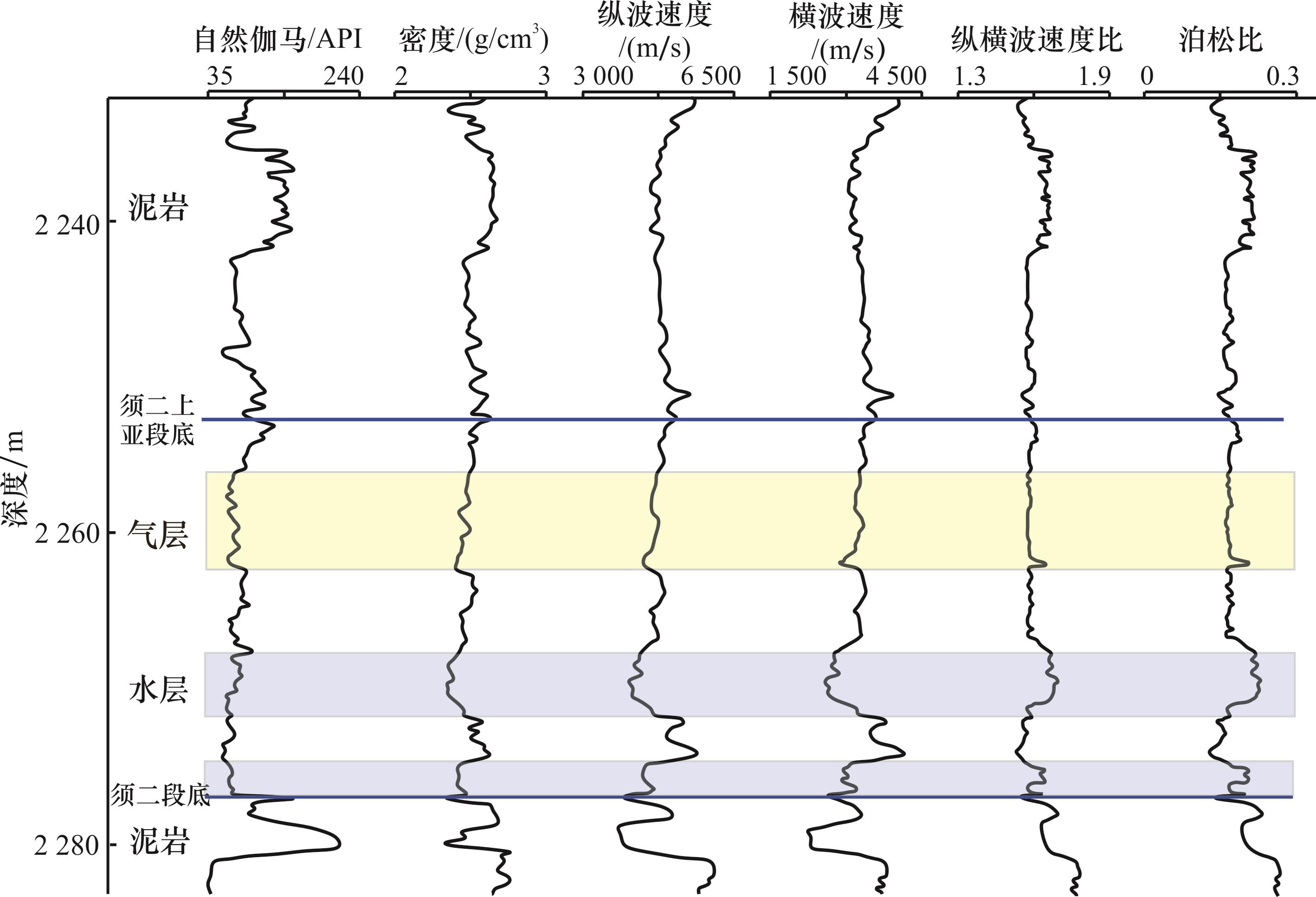

图6 岳114井须二段的测井曲线Fig.6 Logging curve of second member of Xujiahe Formation of Well Yue 114 |
表3 研究区须二段测井曲线参数统计Table 3 Statistics of logging curve parameter of second member of Xujiahe Formation in the study area |
类型 | 自然伽马 /API | 密度 /(g/cm3) | 纵波速度 /(m/s) | 横波速度 /(m/s) | 纵横波 速度比 | 泊松比 |
---|---|---|---|---|---|---|
泥岩 | 120~180 | 2.61~2.66 | 4 055~4 735 | 2 530~2 850 | 1.67~1.73 | 0.22~0.27 |
干层 | 66~81 | 2.56~2.65 | 5 100~5 760 | 3 100~3 345 | 1.65~1.72 | 0.20~0.26 |
水层 | 64~70 | 2.37~2.46 | 4 600~5 150 | 2 880~3 180 | 1.59~1.66 | 0.20~0.23 |
气层 | 62~75 | 2.36~2.48 | 4 580~5 285 | 2 930~3 320 | 1.56~1.60 | 0.16~0.20 |

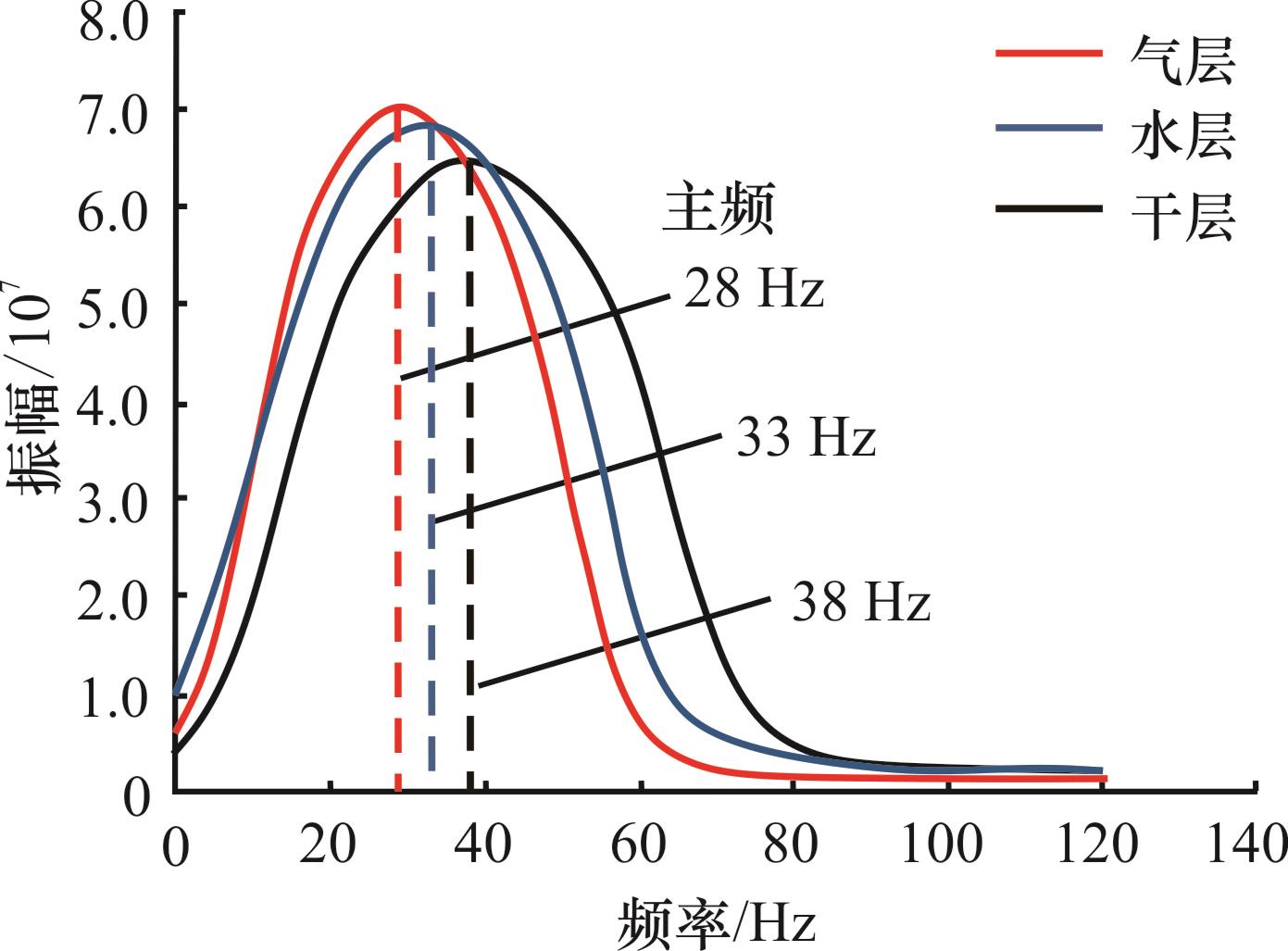

3.2 气层、水层、干层的地震振幅及频谱特征分析
表4 气层、水层和干层的地震振幅和频谱特征总结[23]Table 4 Summary of seismic amplitude and frequency spectrum characteristics of gas layer, water layer and dry layer[23] |
类型 | AVO近、远叠加剖面特征 | 频谱特征 | ||
---|---|---|---|---|
近道叠加 | 远道叠加 | 振幅差异 | ||
气层 | 弱到中强振幅 | 中强振幅,横向变化大,连续性差 | 远道振幅比近道强 | 主频较低,受吸收衰减影响较大 |
水层 | 振幅较强 | 振幅较强,同相轴光滑连续 | 远道振幅比近道略为增强但不明显 | 主频较高,受吸收衰减影响较小 |
干层 | 中—弱反射、连续性较好 | 弱振幅—空白反射、低频、杂乱,不连续 | 远道振幅比近道减弱 | 主频较高,受吸收衰减影响较小 |

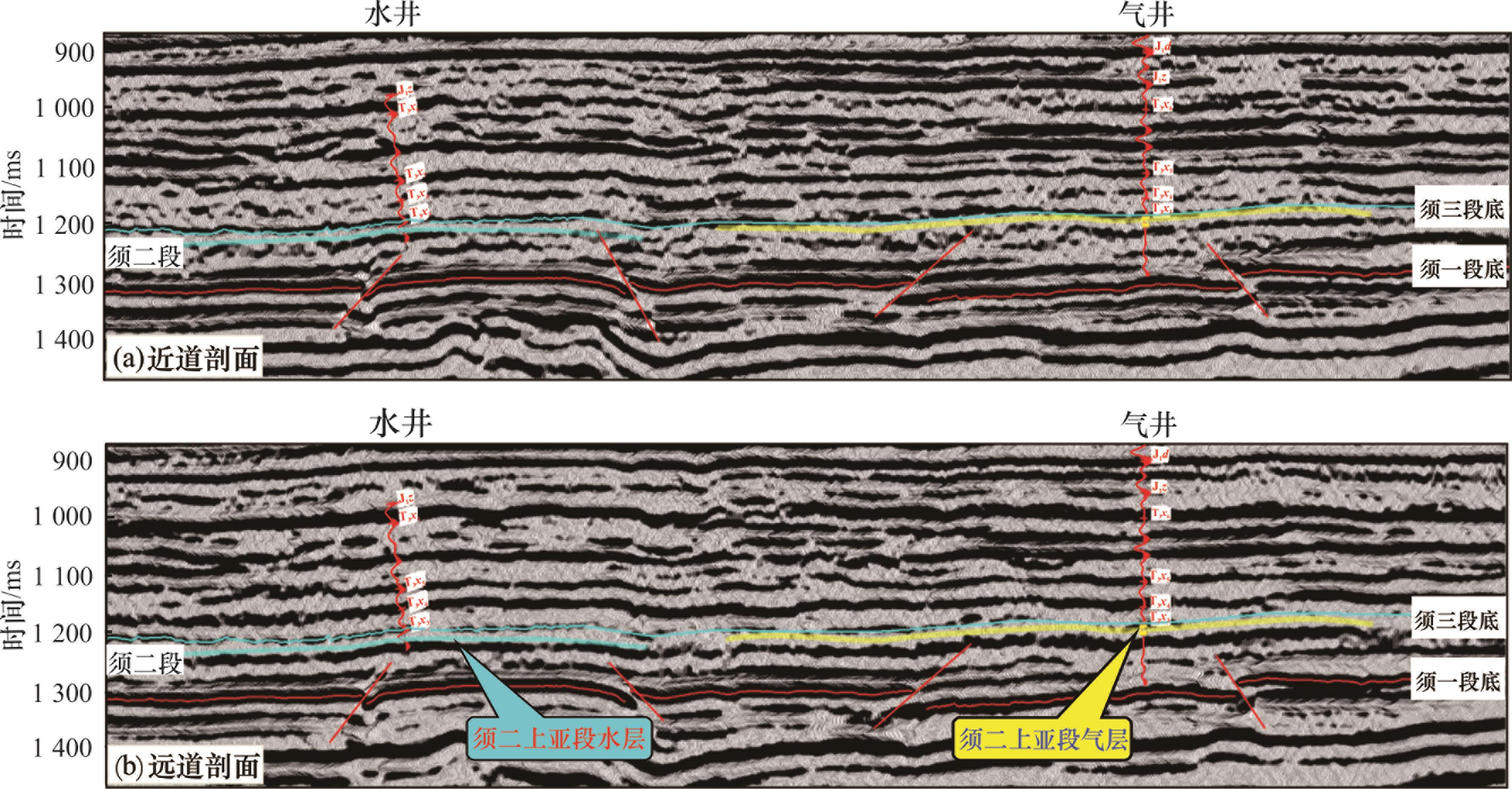

图8 典型气层、水层近远道反射特征对比剖面Fig.8 Comparison section of near and far seismic trace reflection characteristics of typical gas and water layers |
3.3 主振幅主频率气层检测
3.3.1 方法原理
3.3.2 应用结果分析

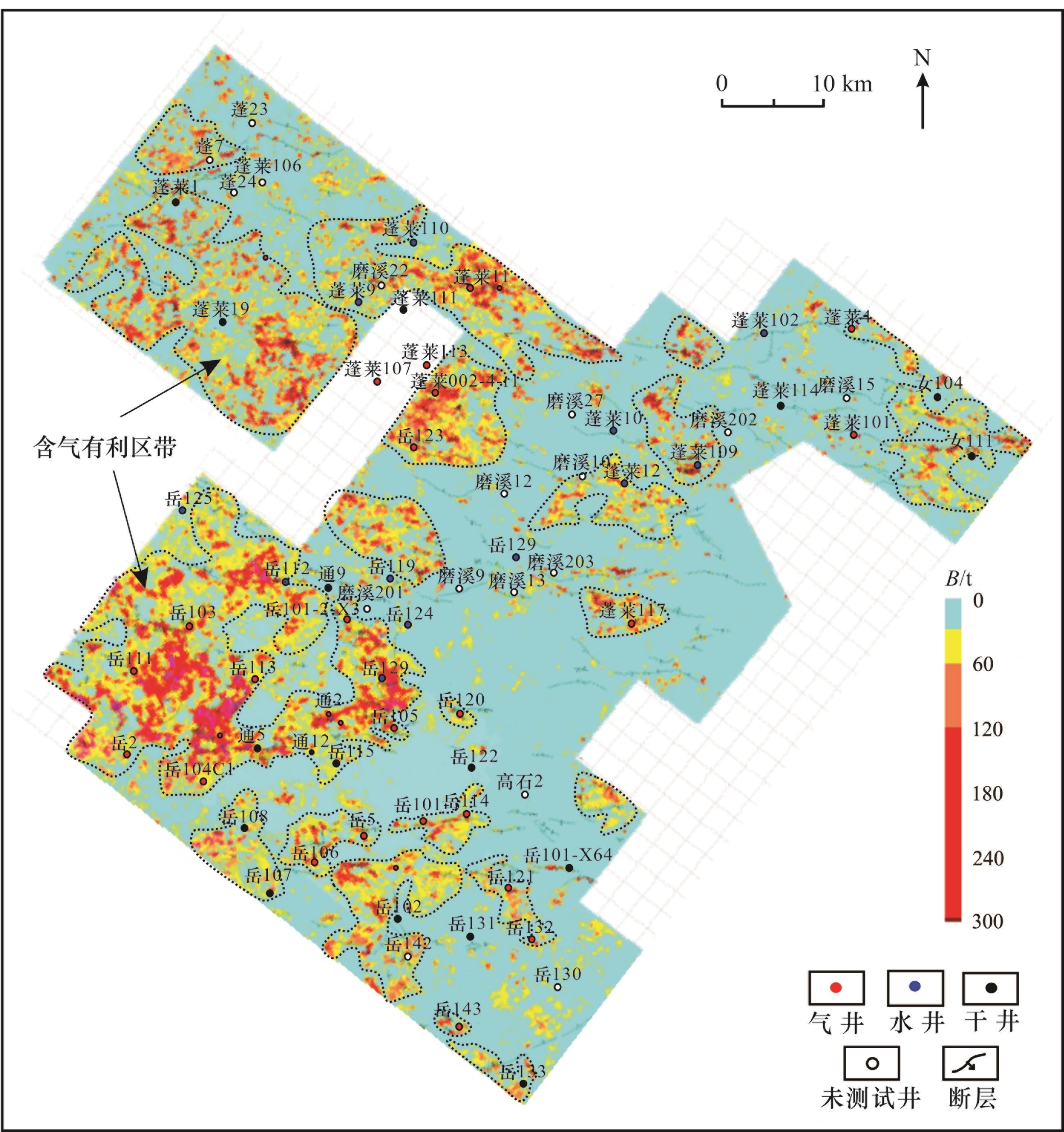

图11 安岳—蓬莱—磨溪地区须二段AVO含气有利区预测平面图Fig.11 Prediction plan of AVO favorable gas bearing area in second member of Xujiahe Formation in Anyue-Penglai-Moxi areas |
